Durban coastal clamps
A Durban yard needed reliable clamping and quick bay changes to keep mild steel and aluminium railings straight, despite humidity and full shifts. Here is how the fit-out landed.
A local railing yard fighting salt and speed
This Durban yard sits not far from the Bluff, with wind and salt spray that rusts bare steel within hours. Their crew turns out balustrades and custom gates for sites up and down the coast. Work mostly runs in mild steel and aluminium, with a few stainless jobs in between. They had been using old pipe clamps and hired tables, but these never held square on repeat jobs and left marks on finished sections.
Their main problem was keeping joints dead straight while moving quickly through batches. Humidity was always high, so clamp screws and bench tops would go orange by lunch. They needed clamping that would hold and release fast, could handle the morning rush, and wouldn’t leave scar lines for the painter to chase.
Setting up ClampRail and the bay for coastal work

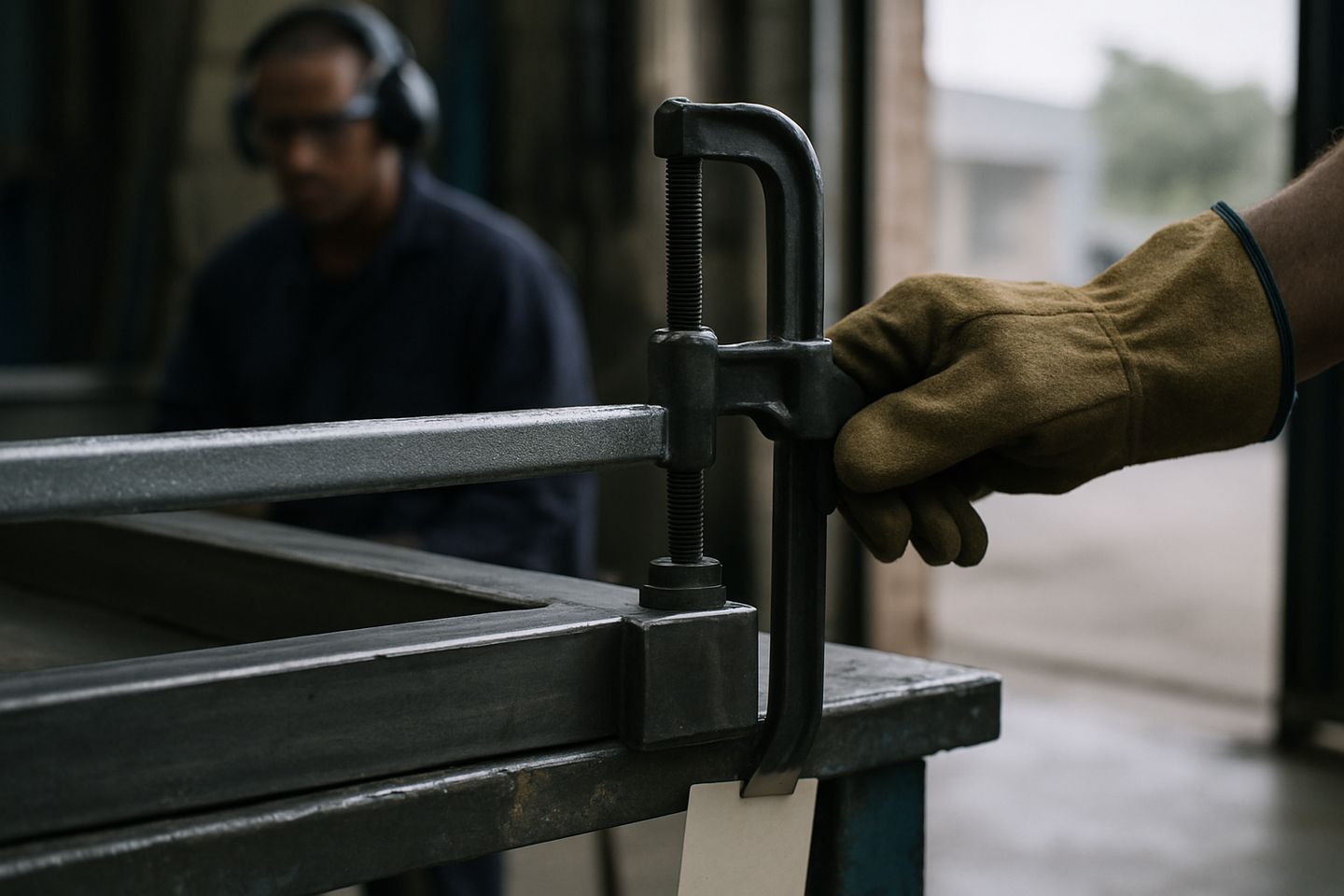

We fitted a ClampRail System with 2.4 metre rails along the main fab bench, plus soft-jaw packs for every clamp. The rails line up with the BenchMaster Pro dog grid, so tube and flat bar can be pinned or squeezed without shifting. EarthBond Kits went on each bench with a bolted M10 earth stud, giving a clean return for every weld and preventing stray current through rails or hinges.
For layout, we used thick JigKit plates and angle blocks for quick set-up of both baluster and gate frames. PPE Station Bays were wall-mounted near the TorchBay cutting zone, making it easy for the team to grab fresh visors and gloves before plasma or grinding. Kanban cards on the Consumable Cart helped spot when discs or soft jaws were running low, so they could restock in the weekly order.
- ClampRail 2.4 m rails with soft jaws
- BenchMaster Pro with dog grid and earth stud
- JigKit angle blocks and plates
- EarthBond Kit on each fab bench
- PPE Station and Consumable Cart close to work zones
First month adjustments and lessons in Durban weather
By the third week, we got a call that clamp screws were sticking and jaws starting to pit, especially on Monday mornings after a rainy weekend. Durban's humidity and salt air hit even black-oil finished parts. The fix was regular wipe-downs and a Saturday spray of corrosion inhibitor on all moving clamp parts, plus bagging up any spare soft jaw packs.
It also turned out that the team was doubling up on clamps for each joint, slowing them down. A quick demo on using the dog grid for initial squaring let them clamp once, check with a square, and weld without shifting. The return cables were sometimes left trailing or double-looped, which we flagged as a safety and welding quality risk. Now the earth lead is always clamped close to the weld, and the M10 earth studs get checked each Monday.
What other coastal yards can use from this fit-out
In coastal towns like Durban, rust is always waiting. Soft jaws and regular clamp care keep marking and pitting away, and matching the ClampRail grid to your main bench saves time every shift. Don’t skip the quick check on earth paths and clamp jaws before you start welding, small slips cost time and rework.
For any shop on the Indian Ocean belt, setting up proper clamping and earth return makes the difference between chasing rust pits and sending out clean, square railings. The routine is simple, but sticking to it is what keeps work off the fixer’s table.
Primary gear: ClampRail System. See also jobs and shopfloor.
